Checkpoint Report

Summary

• We have implemented the CPU version of the entire workflow by ourselves from scratch, including edge detection, point selection, triangulation, and triangle rendering.
• We also finished our first GPU version which can now generate correct outputs. We resolved a couple of compiling issues during the implementation of the GPU version and successfully shared most of the code between CPU and GPU versions.
• The speedup of GPU version is not yet satisfactory (about 4x). We need to profile and tune the performance of the GPU version to make it run faster. We may also need to use a more accurate timer.

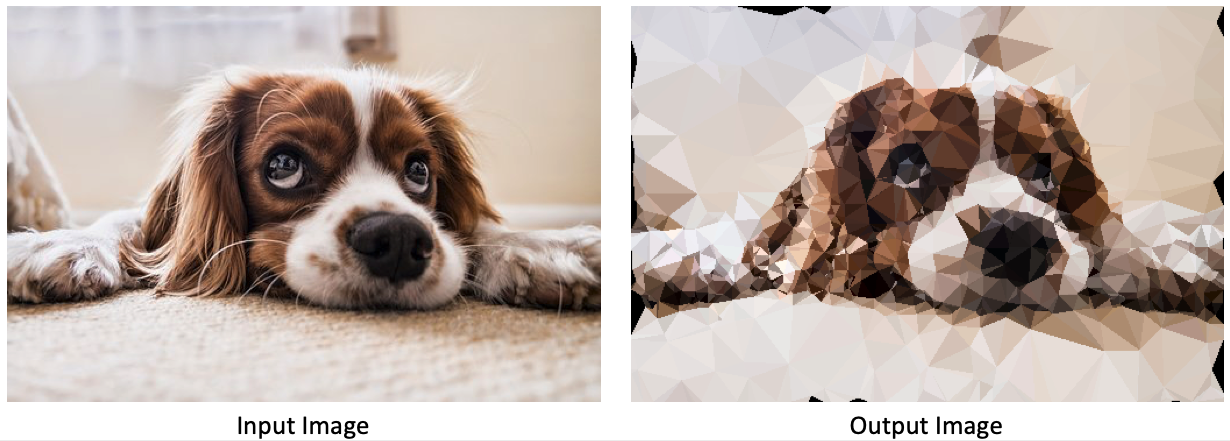

• As can be seen in the picture, we need to find a way to take care of the image boundaries.

Goals and Deliverables

In general, we are still on the track to our planned goals and things. But we want to change our goal from 30fps to 10fps. The reason is we realize that loading the image, transferring data between CPU and GPU, and storing the output image will take 40~60ms. We expect to reduce these time consumption, but achieving an overall 30fps (33ms per image) would be too hard now.

Expected Goals (Plan to achieve):

• Make a program that loads a picture from disk, use Sobel Edge Detector to detect edges, select vertices on the image, triangulates the image, rendering the low poly image, then store and shows the low poly style image. (Completed the workflow!)
• Implement Sobel Edge Detector, Vertices selection, Parallel Jump Flooding Algorithm and Triangle Rendering with CUDA. (Parallel Jump Flooding and Triangulation finished, the others are now using opencv)
• Achieve close real-time computation speed (10fps), and more than 10x overall speedup compared to sequential CPU version using the same algorithm. The number comes from the report of the MPI version, which is about 5x. Since we don’t need the merge step, the number should be higher than the MPI version. (Now the speedup is not satisfactory, we need more profiling on that)

Minimum Goals:

• Finish the parallel version of Delaunay Triangulation and achieve at least 5x speedup compared to CPU version. (Triangulation finished, speedup needs work)
• Complete image input/output features to have displayable demos. (Done!)

Ideal Goals (Hope to achieve):

• Make a close real-time triangulation converter for videos, and achieve better speedup on videos than processing individual frames since the frames in a video are correlated and some data can be reused. (Not started yet)

Deliverables:

• A demo program that can take an image as input, then output a low poly style image.
• A form about speedup.
• (Hopefully) A demo program that can take and video as input, then output a low poly style video.
• (Hopefully) Connect our demo program with a camera.

Preliminary Results

	Edge Detection	Select Vertices	Generate Voronoi	Triangulation	Rendering	Other	Total
CPU -O0	60	50	6710	1430	180	60	8490
CPU -O3	70	80	1300	440	60	40	1990
GPU -O3	NI	NI	30	10	NI		430

As shown in the above form, we tested our algorithm with a 1920x1080 image and 1000 random vertices. NI here means “Not Implemented”. We are able to achieve about 4x overall speedup for now, compared to -O3 compiled CPU code. We have not fine tuned the GPU version performance yet, but we suppose it is due to memory transferring from CPU to GPU. We believe a lot of memory transferring can be saved after we implemented the GPU version of edge detection and triangle rendering, which will improve the performance of our program. Also we are using std::clock() for clocking now. We may switch to a higher precision timer, like the CycleTimer used in HW2, to get more accurate profiling data.

Concerns

• To speed up edge detection and vertices selection, we need to implement them on GPU. But in order to do this, we need to transfer the image between CPU and GPU. If we do the edge detection and vertices selection on CPU, we can avoid transfer image between CPU and GPU. So, here is a tradeoff between data time and computation time.
• Due to the limitation of the current algorithm, we are not able to guarantee the coverage of the image boundaries. We need to figure out a strategy to solve this problem without influencing the speed much.
• We still don’t know how good our final speedup can be.
• We are not sure whether we will have time to do the video transformation (the “Ideal Goal” listed above).

Revised Schedule

Time	Work	Status	Owner
10.29 - 11.4	Write the proposal, research for existing work	Done!	Both
11.5 - 11.11	Complete sequential version of Sobel Edge Detector and Jump Flooding	Done!	Both
11.12 - 11.18	Complete CUDA version of Delaunay Triangulation, prepare for Checkpoint	Done!	Both
11.19 - 11.25	Complete CUDA version of Sobel Edge Detector and Triangle Rendering		Zhengjia
11.26 - 12.2	Performance tuning and analysis	Working	Weichen
12.3 - 12.6	Solve the current problem on the image boundaries		Weichen
12.7 - 12.9	Complete image input and output interface, get ready for demo		Zhengjia
12.9 - 12.15	Final Report		Both
